Product Description:

1) Operating environment conditions: 10°C to 40°C, relative humidity: ≤85%.
2) Temperature range: 32℃～42.5℃
Surface temperature range: -10℃ to 100℃
The environmental temperature range is -10℃ to 60℃
3) Accuracy：
-10℃～32℃＝＋/－0.3℃
"32.1℃～43.0℃ = ±0.3℃
43.1℃～100.0℃＝＋/－0.4℃
Temperature measurement range: 5cm～15cm
Temperature measurement time: 0.5 seconds
6) No operation: Auto power off after 7 seconds
Battery: DC3V (2*AAA)
Battery Life: ≥ 2000 cycles (2x AAA)
9) Size: 150*96*46mm (L*W*H)
10) Weight: 125g (excluding battery)
11) Standard EN12470-5:2003, ENIEC60601-1:2006, ENIEC60601-1-2:2007, ASTM E1965-98.

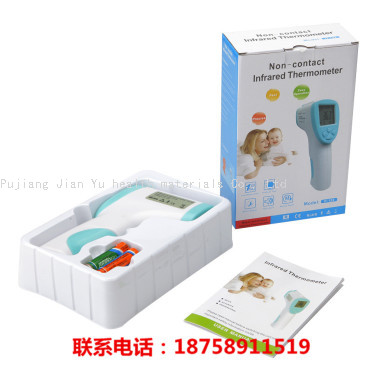

Packing Specification: 1 piece/small box, 30 small boxes/case

Suggestions:

1. Excessive ear wax in the ear canal or sweat on the forehead during forehead temperature measurement may cause the measurement results to be lower. Therefore, it is necessary to maintain the cleanliness of the ear canal when measuring ear temperature, and to keep the forehead clean and free of sweat and cosmetics when measuring forehead temperature.

2. The environment has undergone significant changes between the two measurements (e.g., from indoor to outdoor), please wait for 30 minutes in the new environment before taking the measurement.

3. When measuring continuously, please wait one minute between readings. If you must conduct short-duration continuous measurements, it is normal for there to be slight errors in the temperature readings. In this case, it is recommended to take the average value.

4. There is no absolute standard for body temperature, please try to collect personal temperature measurement records as much as possible to serve as a reference for fever or not.

Warm Tip:

1. Infrared ear thermometer is specially used to measure the temperature of the human ear canal. Compared with ordinary electronic thermometers, the measurement principle and measurement site are different, so it is impossible to obtain the same measurement value. The following are important concepts for judging body temperature:

a) The normal body temperature is a range, not a specific and fixed value, and the body temperature of each person varies due to different constitutions.

b) Normal body temperature varies at different body parts, and should not be compared with each other. Ear temperature is the most accurate and sensitive.

C) Body temperature varies with age, gender, time, exercise, and emotions.

d) Measure your body temperature when you and your family are healthy, so that you can compare it with future fever.

2. Infrared ear thermometer is a high-tech, high-sensitivity measuring instrument. In the use process, it has high requirements for operating environment and measurement methods (whether it is aimed at the ear drum), which may easily lead to inaccurate measurements due to human errors rather than instrument problems. Specific precautions:

a) Infrared ear thermometer must be stable for 30 minutes in the operating environment before it can be used for measurement.

b) The measuring head of the ear thermometer should be inserted as deeply as possible into the ear canal to ensure close contact with the ear drum.

Normal temperature range for the measured area

Temperature of the ear: 35.8 to 38.5 degrees Celsius

oral temperature range from 35.5 to 37.8 degrees Celsius

Axillary temperature ranges from 34.7 to 37.4 degrees Celsius.

Rectal temperature ranges from 36.8 to 38.0 degrees Celsius.

Forehead temperature ranges from 34.8 to 37.4 degrees Celsius.
