Operating Voltage:AC 220V~

Operating Frequency：50-60 Hz
Under Voltage Cut-off :AC 165V~

Over Voltage Cut-off :AC 250V~

Delay Time： 3 miuntes (factory setting).
Output Capacity：15A ,3500W

 Operation instruction:

1:insert the protetor’s plug into the power supply socket,then insert the home appliances’ plug into the protector’s socket.

2:when the voltage with in the normal safe range, the green light on,indicates it is in a safe voltage range and in a working state.

3:when the voltage lower than 170v or higher than 250v, the green light off and the red light on,the protector comes to protection state and cut off the power supply to the protected home appliance.

4: when the voltage return to normal safety voltage range, the red light off and the yellow light on, the protector comes to delay time state.

5:after delay time state finished the yellow light off and the green light on,then the power supply comes to normal state.

6:when in the delay time state, can push the restart button on the protector to quickly restart power supply.

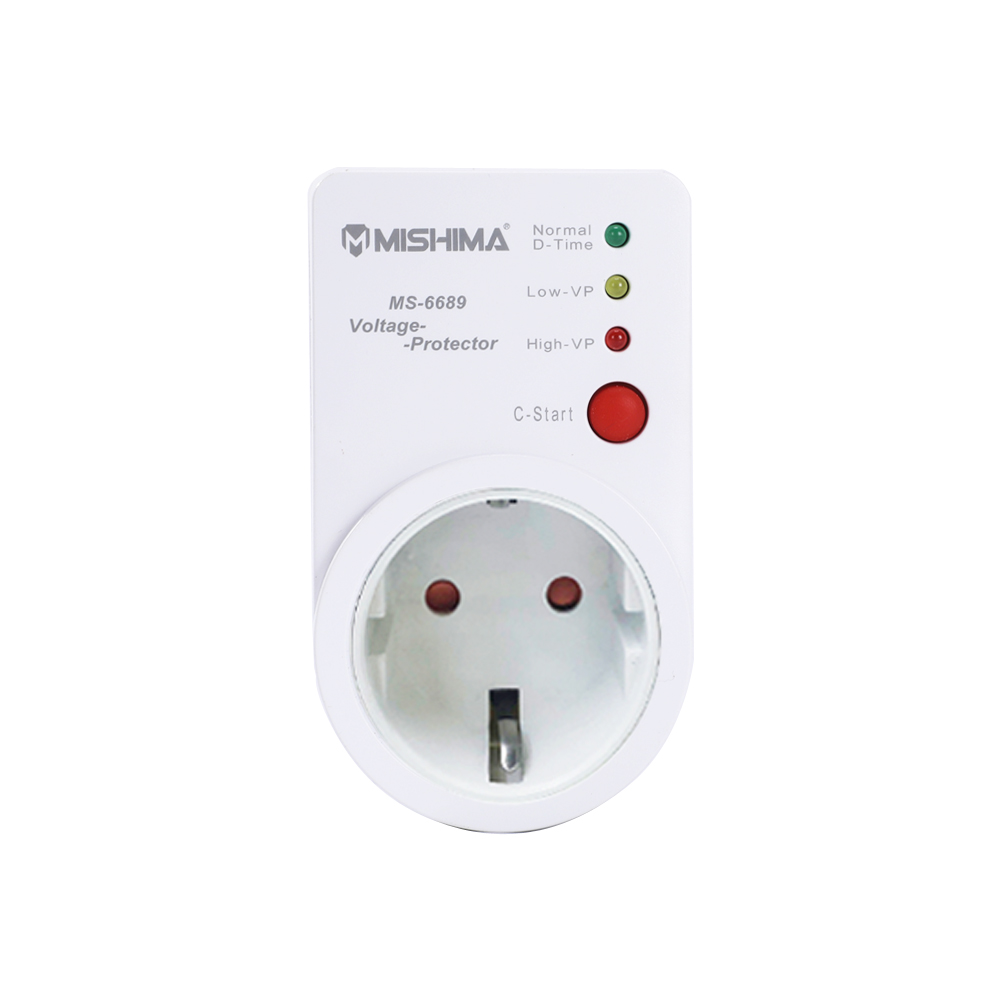

Indicates and light colour:

Green light on: normal safe voltage, power supply working

Yellow light on: delay time state,the voltage just return back to normal safe, power supply off,

Red light on: in protection state, lower voltage or higher voltage, power supply off.
