Main Features

Micro-sized Body: Designed with a micro-sized body measuring 39.2*39.2*18mm, suitable for most cases, switches, and wall sockets.

It not only has a small size but also offers powerful functionality. With a maximum current of 16A, it can be used for most household appliances and lighting.

Voice Control: After connecting the switch to the application, you can control the switch using Alexa or Google Assistant via voice. Enjoy hands-free functionality while sitting at home or on the go.

App Remote Control: You can control the switch at any time and anywhere according to your needs. Whether you are on vacation/business trip or at home, you can enjoy convenient smart life by using the smart life application or the Tuya application.

Electric energy measurement: The switch can record the electricity consumption in real time. You can view the monthly electricity consumption through the APP, which is convenient for you to make an electricity consumption plan and reduce electricity bills.

Supports two-way control: The switch not only supports single control but also supports dual control.

Timed Scheduling: You can set the timed scheduling for the switch module based on your personal needs. Without repeating the on/off operation in the application or manually controlling, you can enjoy a convenient smart life.

Relay Status Setting: You can set this switch to restore the status after power is applied, so you don't have to worry about power failure.

Device Sharing: You can easily set up groups and share devices with your family or friends, so they can control the devices together with you. You can enjoy a smart life with your family and friends.

Multi-protocol matching: The switch module supports multi-protocol matching. Connecting via Bluetooth is more convenient and quick.

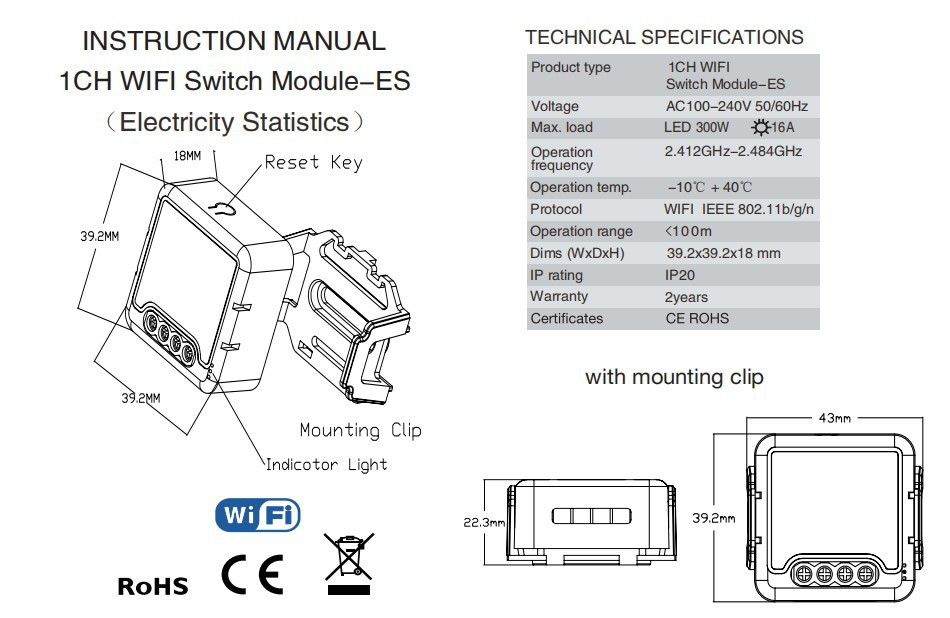

Specification:

Product Type: Wi-Fi Switch Module ES

Voltage: AC100-240V 50/60Hz

Rated current: 16A

Battery Monitor: Yes

Frequency: 2.412GHz-2.484GHz

Working temperature: -10℃ to +40℃

WiFi Protocol: IEEE 802.11b/g/n

Dimensions (Width x Depth x Height): 39.2x39.2x18 mm

IP rating: IP20

Warranty Period: 2 Years

Certification: CE, ROHS

App：Smart Living, Doodle
